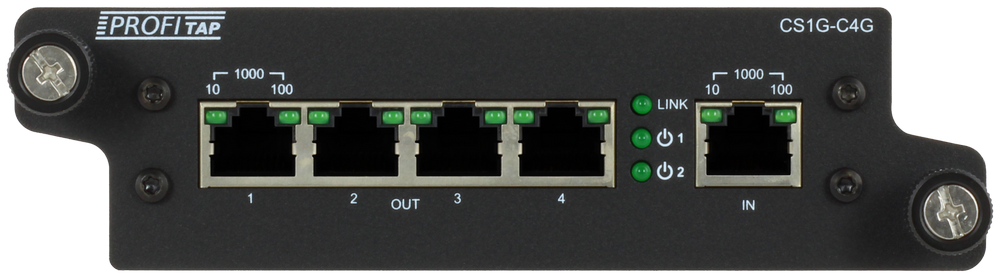

Gigabit Copper Port Replicator

CS1G-C4G

Gigabit Copper Port Replicator
Gigabit Copper Port Replicator

Gigabit Port Replicator

The Gigabit Port Replicator copies traffic from 1 x 10/100/1000 mirrored or SPAN port, to 4 x 10/100/1000 outputs.

The use of port mirroring can have a negative effect on a switch’s performance, greatly limiting the number of monitoring ports available on this kind of devices.

Our Port Replicator optimizes mirrored port (SPAN) usage by duplicating all traffic from a single mirrored port onto 4 monitoring ports. By providing up to 4 analyzers with an exact copy of the traffic, the Gigabit Port Replicator enables greater analysis potential, while requiring only one output from the source appliance.

Technical Specifications

Input
1
Monitor Outputs
4
Speeds
10/100/1000 Mbps
Footprint
Up to 3 in 1U
Power
12 VDC
AC Adapter
90-240 VAC

    • Non-intrusive SPAN port monitoring
    • Full traffic duplication
    • No packet loss
    • Low power consumption
    • Redundant power option
    • All IN and OUT ports located on the front panel
    • Tested with major analysis & monitoring systems
    • Exceptional MTBF
    • Rapid availability
    • Increased reliability with 2-year warranty


Power Supply Rackmount Frame Filler Plates
Power Supply Rackmount Frame Filler Plates
Ordering Reference: APWR2 Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page Product Page



Get a Quote



Did You Know?



  • All our Copper TAPs are covered by a two-year warranty from the date of purchase.
  • You may contact our Technical Support department (+31 (0) 40 782 0880) if you have difficulties during the installation or subsequent use of a Profitap product.
  • Most of our products are supplied from stock, which means we can ship to you via next-day courier service.
