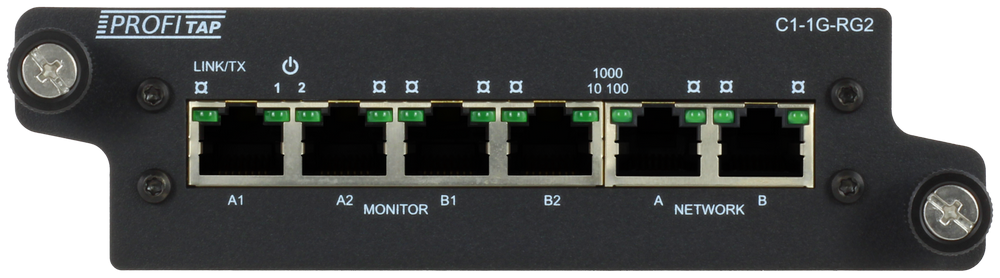

Dual Output Gigabit Copper TAP

C1-1G-RG2
Get a Quote
Dual Output Gigabit Copper TAP

Dual Output Gigabit Copper TAP


In certain situations, it is useful to set up more than one monitoring system on a single link. The C1-1G-RG2 is designed to facilitate such a situation. It duplicates and outputs traffic from one in-line link to up to two monitoring systems. The C1-1G-RG2 is a cost-effective solution that provides a secure access to monitor full-duplex 10/100/1000 Mbps traffic at wire speed. The C1-1G-RG2 features a fail-safe in-line design that ensures uninterrupted network operation in case of power loss. This allows the traffic to pass through the TAPs even when power is disrupted. The integrated Data Diode feature protects the network from any injection of data from the monitor ports.

Technical Specifications

No Break Technology

Profitap Gigabit Ethernet TAPs feature dramatically reduced failover time, consequently reducing the chances of Spanning Tree reconvergence.

This makes them flawlessly designed to synthesize maximum performance and maximum security.

Network Link
1
Monitor Outputs
2
Speeds
10/100/1000 Mbps
Footprint
Up to 3 in 1U
Power
12 VDC
AC Adapter
100–240 VAC
  • Non-intrusive in-line network access
  • Permanent network link guaranteed
  • Fail-safe in-line design ensures uninterrupted network operation in case of power loss
  • Monitoring of all 7 OSI layers
  • No packet loss, no point of failure
  • Data Diode function prevents any injection of data from the monitoring ports back into the network
  • Fully 802.3af & VoIP compliant, PoE passthrough
  • Low power consumption
  • Supports link failure propagation (LFP)
  • Redundant powering
