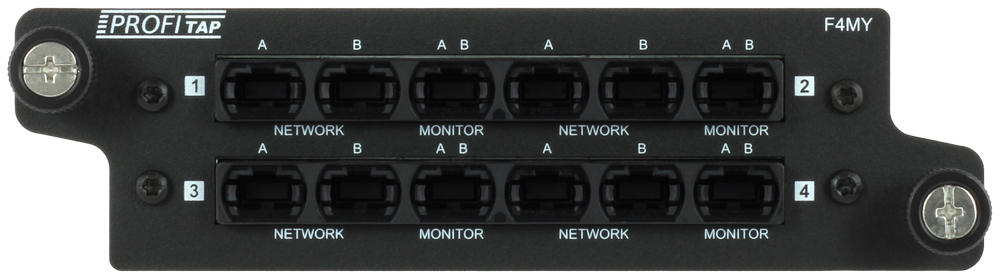

4-Link MTP Fiber TAP
The F4MY and F4M4 are high-density MTP Fiber Optic TAPs that provide in-line access to 40G, 100G and 400G fiber optic networks. These 4-Link MTP Fiber TAPs provide access to your 40GBASE-SR4, 100GBASE-SR4, and 400GBASE-SR8 networks without packet loss. They are available in a 1/3U-wide footprint (F4MY model) and 1/3U-high footprint (F4M4 model). The Profitap MTP Series allow you to connect fan-out cables, which split one MTP connector to multiple LC connectors. Profitap 4-Link MTP Fiber TAP is non-intrusive and isolates monitoring devices from the network to ensure complete security.
Technical Specifications
Network Links
4
Monitor Outputs
4
Connectors
MTP/MPO
Type
40GBASE-SR4
100GBASE-SR4
400GBASE-SR8
100GBASE-SR4
400GBASE-SR8
Speed
40 Gbps
100 Gbps
400 Gbps
100 Gbps
400 Gbps
Split Ratio
50/50
50/50
50/50
50/50
50/50
Footprint
Up to 3 in 1U
- Passive, unpowered
- Non-intrusive in-line network access
- No packet loss, no point of failure
- Permanent network link guaranteed
| Standard | Order Reference |
| 40GBASE-SR4 | F4MY-SR4 / F4M4-SR4 |
| 100GBASE-SR4 | F4MY-SR4 / F4M4-SR4 |
| 400GBASE-SR8 | F4MY-SR8 / F4M4-SR8 |
| Rackmount Frame | Filler Plates |
|---|---|
 |
 |
| Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
| Product Page | Product Page |
| 1/3U Filler Plate | |
|---|---|
 |
|
|
Ordering Reference: AFP13U |
|
| Product Page |
