1-Link MTP Fiber TAP

 F1M4

1-Link MTP Fiber TAP
mtp fiber tap

1-Link MTP Fiber TAP

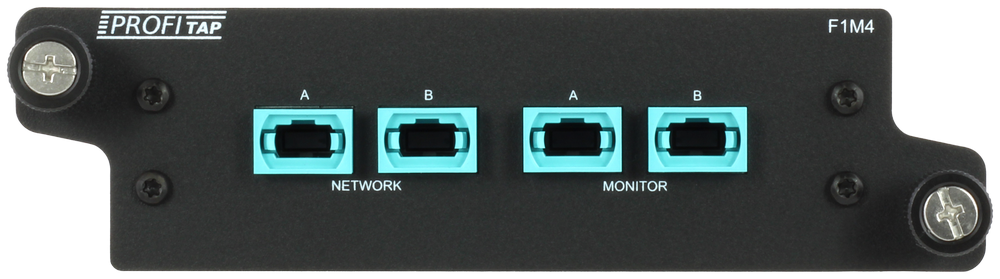

The F1M4 is a high-density MTP Fiber Optic TAP that provides in-line access to 40G and 100G fiber optic networks. This 1-Link MTP Fiber TAP provides access to your 40GBASE-SR4, 100GBASE-SR4, and 100GBASE-SR10 networks without packet loss. The Profitap MTP Series allow you to connect fan-out cables, which split one MTP connector to multiple LC connectors. Profitap 1-Link MTP Fiber TAP is non-intrusive and isolates monitoring devices from the network to ensure complete security.

Technical Specifications

Network Link
1
Monitor Output
1
Connectors
MTP/MPO
Type
40GBASE-SR4
100GBASE-SR4
100GBASE-SR10
Speed
40 Gbps
100 Gbps
100 Gbps
Split Ratio
50/50
50/50
50/50
Footprint
Up to 3 in 1U



    • Passive, unpowered
    • Non-intrusive in-line network access
    • No packet loss, no point of failure
    • Permanent network link guaranteed
Standard Order Reference
40GBASE-SR4 F1M4-SR4
100GBASE-SR4 F1M4-SR4
100GBASE-SR10 F1M4-SR10


Rackmount Frame Filler Plates
Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page



Get a Quote



Did You Know?



  • All of our Fiber TAPs are covered by a ten-year warranty from the date of purchase.
  • You may contact our Technical Support department (+31 (0) 40 782 0880) if you have difficulties during the installation or subsequent use of a Profitap product.
  • Most of our products are supplied from stock, which means we can ship to you via next-day courier service.
