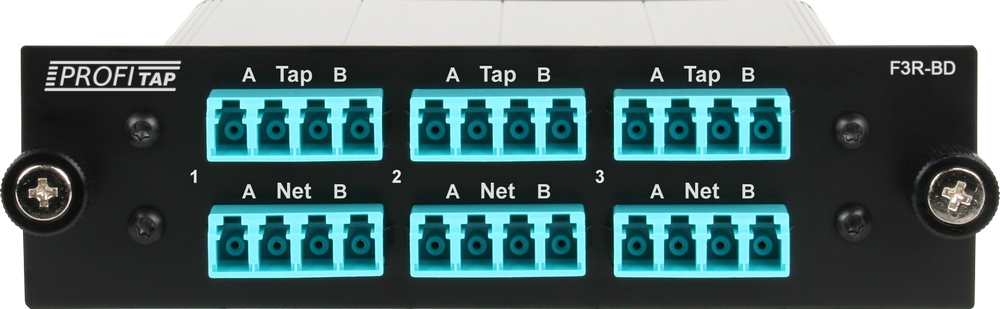

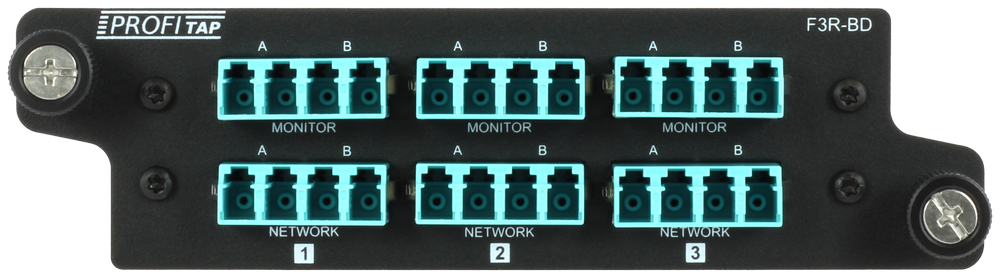

3-Link 40/100G BiDi Fiber TAP
The F3R-40BD provides complete access and visibility into duplex 40/100G Cisco bidirectional links. The Profitap 40/100G BiDi Fiber Optic TAP forwards traffic to monitoring tools, enabling accurate packet capture and analysis, and is a cost-effective solution for migrating from 10G to 40/100G networks. For complete security and optimum performance, the F3R-40BD is fully passive and requires no power for operation, ensuring a permanent network link at all times.
Technical Specifications
Network Links
3
Monitor Outputs
3
Connectors
LC
Type
OM4 MM
800/950nm
50/125µm
40 Gbps
800/950nm
50/125µm
40 Gbps
OM5 MM
850–950nm
50/125µm
40/100 Gbps
Split Ratio
50/50
Footprint
Up to 3 in 1U rack plate
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
| Rackmount Frame | Filler Plates |
|---|---|
 |
 |
| Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
| Product Page | Product Page |
