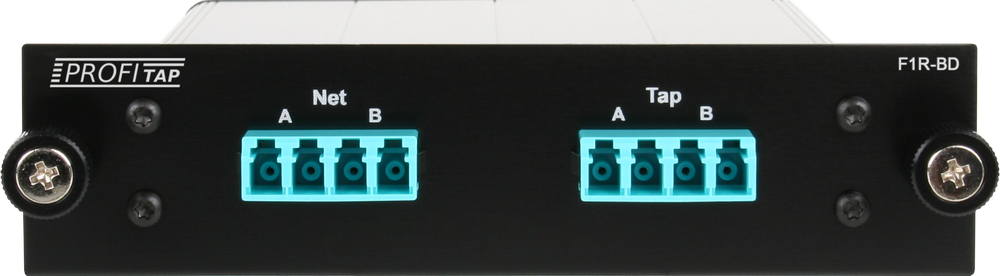

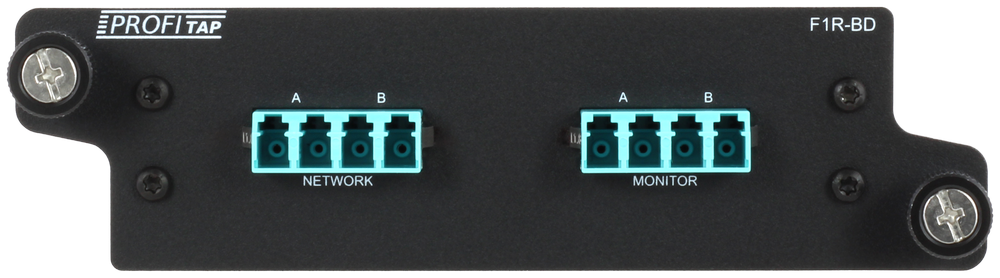

1-Link 40/100G BiDi Fiber TAP

 F1R-40BD

40G BiDi Fiber TAP

1-Link 40/100G BiDi Fiber TAP

Our BiDi Fiber TAPs provide visibility to duplex 40/100G multi-mode bidirectional links. This type of network TAP uses bidirectional technology on duplex fiber (2 parallel fiber strands), offering complete monitoring of Cisco 40G and 100G bidirectional fiber networks.

For full security and optimum performance, the 40G/100G BiDi is completely passive, requires no power, and is invisible to the network.

Technical Specifications

Advanced Technology

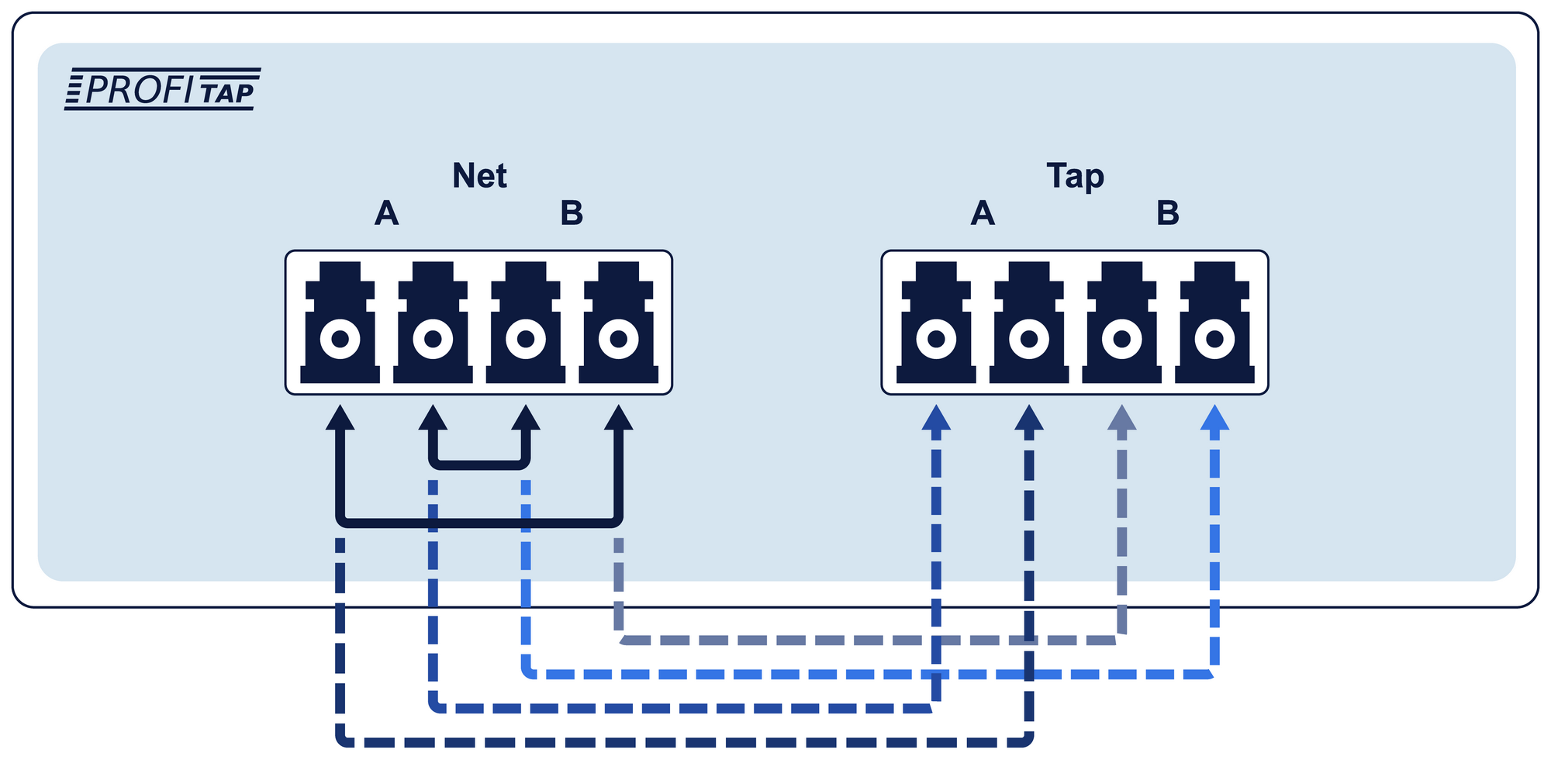

While typical fiber optic networks use one fiber strand for transmission (Tx), and one for reception (Rx), bidirectional connections allow both Tx and Rx to take place within the very same fiber strand.

Network Links
1
Monitor Links
1
Connectors
LC
Type
OM4 MM
800/950nm
50/125µm
40 Gbps


OM5 MM
850–950nm
50/125µm
40/100 Gbps

Split Ratio
50/50
Footprint
Up to 3 in 1U rack plate
  • Non-intrusive in-line monitoring
  • Permanent network link guaranteed
  • Monitoring of all OSI layers
  • No packet loss
  • No point of failure
  • Passive, unpowered
  • 10-year warranty


Rackmount Frame Filler Plates
Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page



Get a Quote



Did You Know?



  • All our Fiber TAPs are covered by a ten-year warranty from the date of purchase.
  • You may contact our Technical Support department (+31 (0) 40 782 0880) if you have difficulties during the installation or subsequent use of a Profitap product.
  • Most of our products are supplied from stock, which means we can ship to you via next-day courier service.
