High Density Modular TAP
Flexible, Scalable, Non-Intrusive Passive Fiber Optic TAP
Profitap MOD-TAP is a flexible and scalable fiber optic TAP solution that provides access to network traffic for a wide variety of fiber types and standards. The MOD-TAP forwards traffic to monitoring and security tools without any packet loss.
With a modular design and a wide range of fully passive TAP modules available, different models can be combined to mix different fiber types in a single chassis. The MOD-TAP brings a high density of TAPs to your monitoring system, with up to 24 TAP modules per chassis.
The MOD-TAP is an ideal solution when maximum flexibility and high density are required.

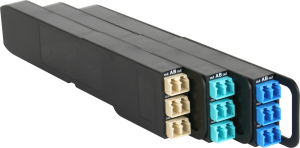

LC Fiber TAP Module
| FOOTPRINT | Up to 24 TAP modules in 1U |
| CONNECTORS | LC |
| SPLIT RATIOS | 50/50 60/40 70/30 |
| TYPE | SPEED |
| MM 62.5/125 µm | 1–10 Gbps |
| MM 50/125 µm | 1–100 Gbps |
| SM 9/125 µm | 1–400 Gbps |
Ordering Reference: F1L-MOD

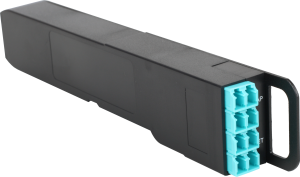

BiDi TAP Module
| FOOTPRINT | Up to 16 TAP modules in 1U |
| CONNECTORS | LC |
| SPLIT RATIOS | 50/50 60/40 |
| TYPE | SPEED |
| OM4 MM 800/950nm 50/125µm | 40/100 Gbps |
| OM5 MM 850–950nm 50/125µm | 40/100 Gbps |
Ordering Reference: F1B-MOD
MTP Fiber TAP Module
| FOOTPRINT | Up to 16 TAP modules in 1U |
| CONNECTORS | MTP/MPO |
| SPLIT RATIOS | 50/50 70/30 |
| TYPE | SPEED |
| MM 40GBASE-SR4 | 40 Gbps |
| MM 100GBASE-SR4 | 100 Gbps |
| MM 100GBASE-SR10 | 100 Gbps |
| | |
| SM 40GBASE-PLR4 | 40 Gbps |
| SM 100GBASE-PSM4 | 100 Gbps |
Ordering Reference: F1M-MOD

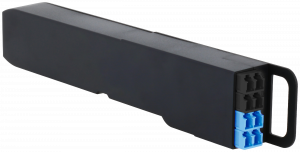

DiodeTAP Module
| FOOTPRINT | Up to 16 TAP modules in 1U |
| CONNECTORS | LC |
| SPLIT RATIOS | 50/50 60/40 |
| TYPE | SPEED |
| SM 9/125 µm MM 50/125 µm |
1–400 Gbps 1–25 Gbps |
Ordering Reference: F1D-MOD
Modular Chassis
Ordering Reference: AMC-1U
Thank you!
Your submission has been sent. If you want more information, solutions, and use cases, check out the links below:Features
Non-intrusive in-line network access.
Permanent network link guaranteed.
Monitoring of all OSI layers.
No packet loss, no point of failure.
Various split ratios available.
Passive, unpowered.
LC, MTP, 40/100G BiDi, and DiodeTAP modules available.
Diode function protects network against light insertion from TAP ports (>25 dB insertion loss on TAP port input blocks all signal).
