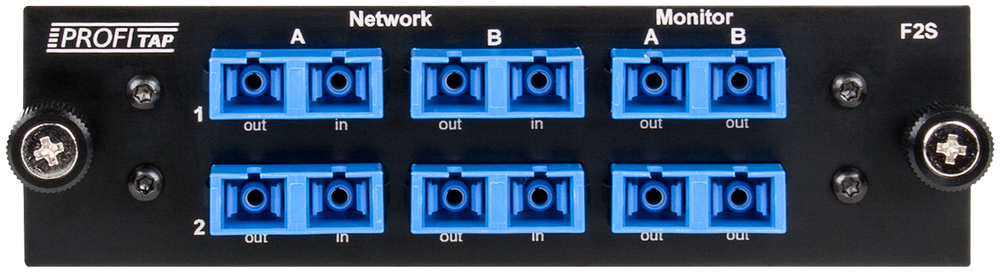

2-Link SC Fiber TAP
The Profitap 2-Link SC Fiber TAP provides safe access to in-line fiber optic network traffic. It is designed to enable accurate in-line monitoring of Single-Mode and Multi-Mode fiber optic networks. The F2S provides a complete copy of the traffic for monitoring and security appliances. The 2-Link SC Fiber TAP is fully passive and does not introduce a point of failure to the network.
Technical Specifications
Network Links
2
Monitor Outputs
2
Connectors
SC
Type
MM 62.5/125 µm
MM 50/125 µm
SM 9/125 µm
MM 50/125 µm
SM 9/125 µm
Speed
1 Gbps
1-10 Gbps
1-100 Gbps
1-10 Gbps
1-100 Gbps
Split Ratio
50/50
60/40
70/30
60/40
70/30
Footprint
Up to 3 in 1U rack plate
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
| Rackmount Frame | Filler Plates |
|---|---|
 |
 |
| Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
| Product Page | Product Page |
