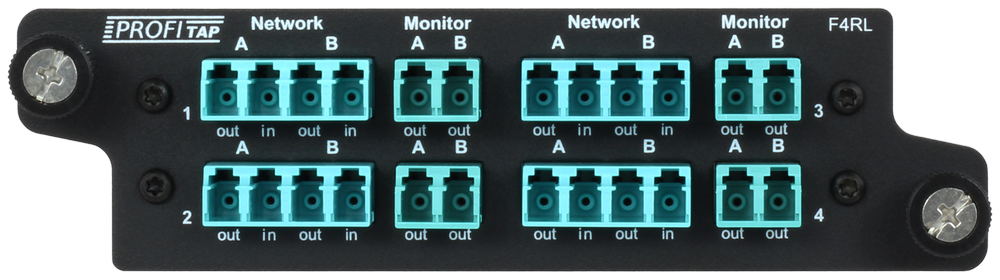

4-Link LC Fiber TAP
The Profitap F4L is a passive fiber optic TAP that provides non-intrusive, permanent in-line network access for fiber monitoring devices. The 4-Link LC Fiber TAP enables the monitoring of 4 LC fiber optic links. The F4L delivers an exact copy of the signal on the network link without any disruption to the network. It is a fully passive device, requiring no power, which ensures it does not introduce a point of failure when deployed in a network. The Profitap 4-Link LC Fiber Optic TAP is available in various fiber types and split ratios.
Technical Specifications
Network Links
4
Monitor Outputs
4
Connectors
LC
Type
MM 62.5/125 µm
MM 50/125 µm
SM 9/125 µm
MM 50/125 µm
SM 9/125 µm
Speed
1 Gbps
1-25 Gbps
1-100 Gbps
1-25 Gbps
1-100 Gbps
Split Ratio
50/50
60/40
70/30
60/40
70/30
Footprint
Up to 3 in 1U
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
| Rackmount Frame | Filler Plates |
|---|---|
 |
 |
| Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
| Product Page | Product Page |
