10GBASE-T TAP

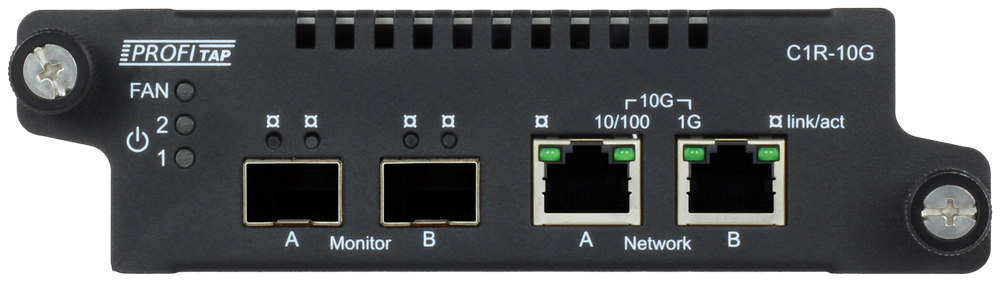

C1R-10G
Get a Quote
10G Copper TAP

10M/100M/1G/10G Copper Monitoring


Profitap 10GBASE-T TAP provides fail-safe access for monitoring 10M/100M/1G/10G copper traffic. The 10GBASE-T TAP creates an exact copy of full-duplex copper network traffic, including low-level errors, and sends it to the monitoring devices. In order to prevent network downtime, the 10GBASE-T TAP supports link failure propagation (LFP), which transmits link failure errors between ports, allowing the network to activate a redundant path, while the TAP stays available for auto-negotiation. Profitap 10GBASE-T TAP is non-intrusive, has no IP address, and isolates monitoring devices from the network to ensure complete stability and security. The integrated Data Diode feature protects the network from any injection of data from the monitor ports.

Technical Specifications

Link-Failure Propagation



Our Copper TAPs transmit link failure errors between ports, allowing the network to activate a redundant path, while the TAP stays available for autonegotiation.

LFP ensures less downtime and is essential for high availability networks.



10GBase-T TAP in a rack

Link-Failure Propagation

Our Copper TAPs transmit link failure errors between ports, allowing the network to activate a redundant path, while the TAP stays available for autonegotiation.

LFP ensures less downtime and is essential for high availability network

10GBase-T TAP in a rack
Network Link
1
Monitor Output
1
Speeds
10M/100M/1G/10G
Footprint
Up to 3 in 1U
Power
12 VDC
AC Adapter
100–240 VAC
  • Non-intrusive in-line network access
  • Fail-safe monitoring
  • Monitoring of all 7 OSI layers
  • No packet loss, no point of failure
  • Data Diode function prevents any injection of data from the monitoring ports back into the network
  • Supports link failure propagation (LFP)
  • Monitor SFP+ ports support SR, LR, and Copper modules, and passive Twinax cables
  • Fully 802.3af and VoIP compliant, PoE passthrough
  • Redundant powering
PT-1G-BT-45 PT-1G-SX-85 PT-1G-LX-31 PT-10G-SR-85 PT-10G-LR-31 PT-10G-BT-45
SFP Module SFP Module SFP Module SFP Module SFP Module SFP Module
1000BASE-T
SFP 100M (RJ45)
1000BASE-SX
SFP 850NM 550M (LC)
1000BASE-LX/LH
SFP 1310NM 20KM (LC)
10GBASE-SR
SFP+ 850NM 300M (LC)
10GBASE-LR
SFP+ 1310NM 10KM (LC)
10GBASE-T
SFP+ 30M (RJ45)



Power Supplies Triple Power Supplies Rackmount Chassis Kit
Power Supplies Triple Power Supplies Rackmount Chassis Kit
Ordering Reference: APWRB Ordering Reference: APWRB3 Ordering Reference: ARKB-1U
Got to Product Page Go to Product Page Go to Product Page
