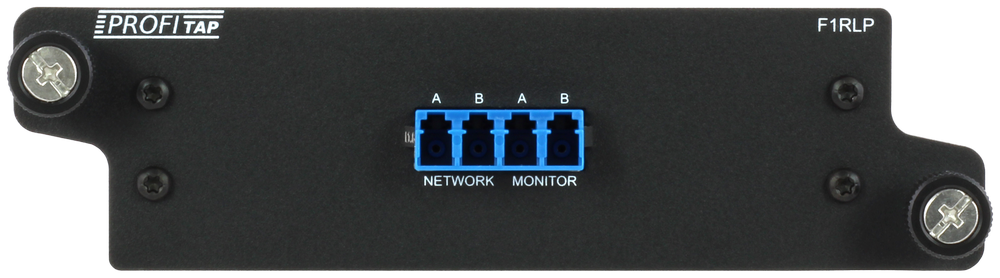

1-Link Single-Mode BiDi Fiber TAP

F1RLP
Get a Quote
1-Link BiDi PON TAP

1-Link Bidirectional Single-Mode Fiber TAP


Bidirectional PON TAPs are designed to provide permanent in-line access for the monitoring of bidirectional passive optical networks. While typical fiber optic networks use one fiber strand for transmission (Tx) and one for reception (Rx), bidirectional connections allow both Tx and Rx to take place within the same fiber strand. These BiDi links cannot be monitored using standard fiber TAPs. Profitap bidirectional PON TAPs enable the monitoring of simplex bidirectional single-mode connections (9/125 µm, 1260–1620 nm). Invisible to the network and completely passive, Bidirectional PON TAPs will not affect the performance of your network.

Technical Specifications

Network Link
1
Monitor Output
1
Connectors
LC
Type
SM 9/125 µm
1260–1620 nm
Speed
1–100 Gbps
Split Ratio
50/50
Footprint
Up to 3 in 1U rack plate
  • Non-intrusive in-line network access
  • Permanent network link guaranteed
  • Monitoring of all OSI layers
  • No packet loss, no point of failure
  • Passive, unpowered
  • Wavelengths 1260–1620 nm


Rackmount Frame Filler Plates
Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page



Get a Quote



Did You Know?



  • All of our Fiber TAPs are covered by a ten-year warranty from the date of purchase.
  • You may contact our Technical Support department (+31 (0) 40 782 0880) if you have difficulties during the installation or subsequent use of a Profitap product.
  • Most of our products are supplied from stock, which means we can ship to you via next-day courier service.
