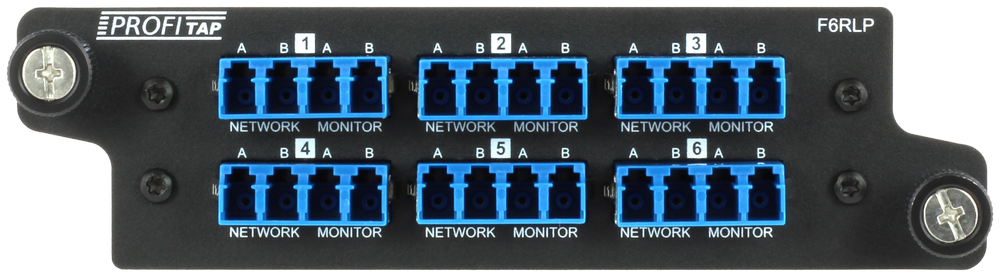

6-Link Single-Mode BiDi Fiber TAP

 F6RLP

6-link Bidirectional PON Fiber TAP
Bidirectional Fiber TAP

6-Link Bidirectional Single-Mode Fiber TAP

Bidirectional fiber connections use the same fiber strand for transmission (Tx) and reception (Rx), with Tx and Rx taking place on different wavelengths. While standard fiber TAPs are unable to monitor such connections, our BiDi fiber TAPs achieve this feat flawlessly.

Profitap BiDi Single-Mode Fiber TAPs enable the monitoring of simplex bidirectional single-mode connections (9/125 µm, 1260–1620 nm). For full security and optimum performance, BiDi Fiber TAPs are completely passive, require no power, and are invisible to the network.

Technical Specifications

Advanced Technology

While typical fiber optic networks use one fiber strand for transmission (Tx), and one for reception (Rx), bidirectional connections allow both Tx and Rx to take place within the very same fiber strand.

Network Links
6
Monitor Links
6
Connectors
LC
Type
SM 9/125 µm
1260–1620 nm
Speed
1–100 Gbps
Split Ratio
50/50
Footprint
Up to 3 in 1U rack plate
  • Non-intrusive in-line monitoring
  • Permanent network link guaranteed
  • Monitoring of all OSI layers
  • No packet loss
  • No point of failure
  • Passive, unpowered
  • Wavelengths 1260–1620 nm
  • 10-year warranty


Rackmount Frame Filler Plates
Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page



Get a Quote



Did You Know?



  • All our Fiber TAPs are covered by a ten-year warranty from the date of purchase.
  • You may contact our Technical Support department (+31 (0) 40 782 0880) if you have difficulties during the installation or subsequent use of a Profitap product.
  • Most of our products are supplied from stock, which means we can ship to you via next-day courier service.
