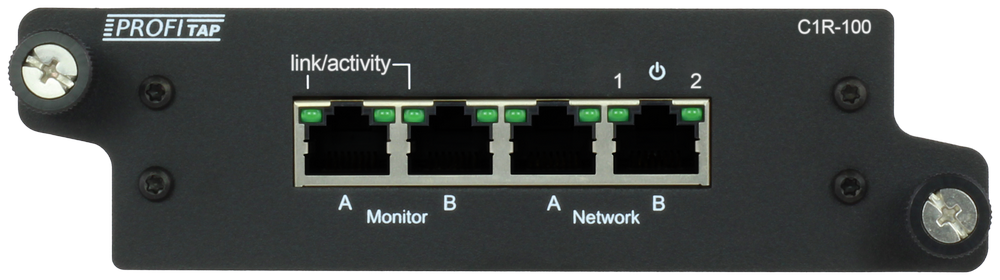

100M Full-Duplex Copper TAP
C1R-100 is a secure, non-intrusive Fast Ethernet TAP that provides passive network access for monitoring 100M copper networks. C1R-100 seamlessly duplicates and outputs a copy of full-duplex 10/100 Mbps traffic with no impact on the network. Up to 3 TAPs can be deployed in a 1U rackmount. C1R-100 isolates monitoring devices from the network to ensure complete security.
Technical Specifications
Fast Ethernet TAPs
Our Fast Ethernet TAPs boast the same array of features as the Gigabit series, with the difference that, as they are designed for 10/100BaseT networks, the network link is fully passive, ensuring a permanent network link at all times with zero failover time or link restoration delay.
Network Link
1
Monitor Output
1
Speeds
10/100 Mbps
Footprint
Up to 3 in 1U
Power
12 VDC
AC Adapter
100–240 VAC
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Zero failover time or link restoration delay
- Monitoring of all 7 OSI layers
- No packet loss, no point of failure
- Data Diode function prevents any injection of data from the monitoring ports back into the network
- Fully 802.3af & VoIP compliant
- Low power consumption
- Redundant powering
Power Supply | Rackmount Frame | Filler Plates |
---|---|---|
Ordering Reference: APWR2 | Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
Product Page | Product Page | Product Page |
