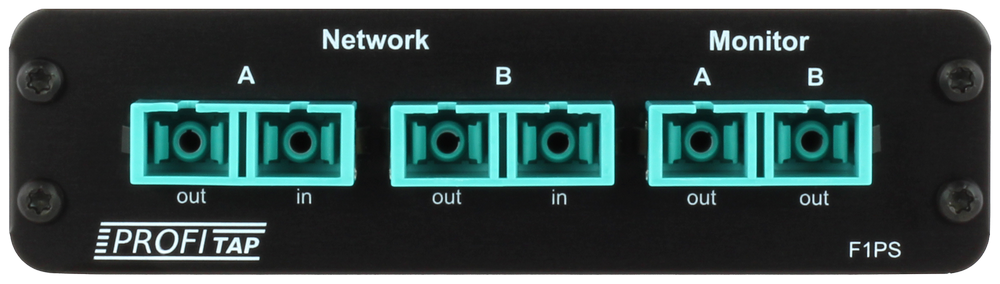

Portable SC Fiber TAP
The Profitap 1-Link Portable SC Fiber TAP provides safe access to in-line fiber optic network traffic. It is designed to enable accurate in-line monitoring of half/full duplex fiber networks without introducing a single point of failure to the network. Its portable design allows it to be easily deployed in the field.
Technical Specifications
Network Link
1
Monitor Output
1
Connectors
SC
Type
MM 62.5/125 µm
MM 50/125 µm
SM 9/125 µm
MM 50/125 µm
SM 9/125 µm
Speed
1 Gbps
1-10 Gbps
1-100 Gbps
1-10 Gbps
1-100 Gbps
Split Ratio
50/50
60/40
70/30
60/40
70/30
Dimensions
113 x 88 x 30 mm
4.4 x 3.5 x 1.2 in
4.4 x 3.5 x 1.2 in
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
