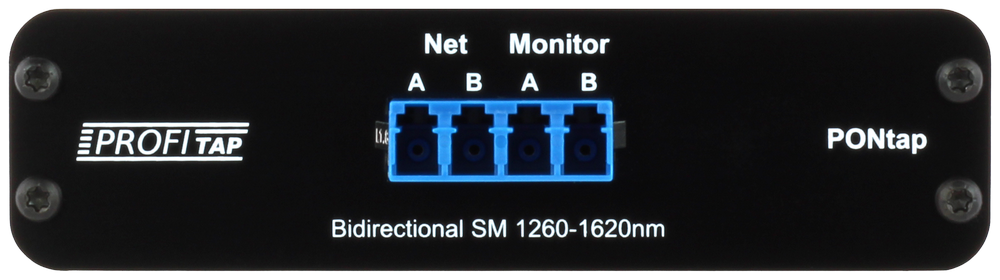

Portable BiDi PON Fiber TAP
The F1PLP is a portable Bidirectional PON TAP designed to provide complete, safe, in-line access for the monitoring of bidirectional passive optical networks. Profitap Bidirectional PON TAPs enable the monitoring of simplex bidirectional single-mode connections (9/125 µm, 1260–1620 nm). Invisible to the network and completely passive, the Bidirectional PON TAPs will not affect the performance of your network.
Technical Specifications
Network Link
1
Monitor Output
1
Connectors
LC
Type
SM 9/125 µm
Speed
1-100 Gbps
Split Ratio
50/50
Dimensions
113 x 88 x 30 mm
4.4 x 3.5 x 1.2 in
4.4 x 3.5 x 1.2 in
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Wavelengths 1260–1620 nm
