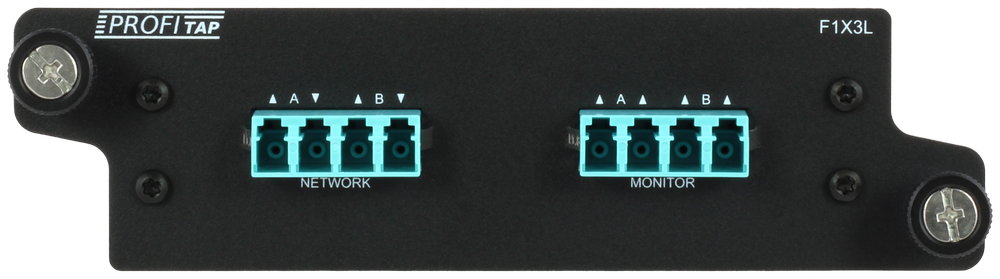

Dual Output LC TAP
The Dual Output LC TAP is a Fiber Optic TAP suited for the monitoring of a single fiber optic link by two different analyzers. To provide two monitor output signals from a single link, the Dual Output LC TAP splits the optical signal twice. These two output signals can be connected to two separate monitoring systems, to be filtered and analyzed in different ways. The Dual Output LC TAP is fully passive, ensuring a permanent network link at all times.
Technical Specifications
Network Links
1
Monitor Outputs
2
Connectors
LC
Types
SM 9/125 µm
MM 50/125 µm
MM 50/125 µm
Speed
1-100 Gbps
Split Ratio
50/25/25
40/30/30
40/30/30
Footprint
Up to 3 in 1U
- Non-intrusive in-line network access
- Permanent network link guaranteed
- Monitoring of all OSI layers
- No packet loss, no point of failure
- Passive, unpowered
- Various split ratios available
Rackmount Frame | Filler Plates |
---|---|
Ordering Reference: ARF-1U | Ordering Reference: AFP-1U |
Product Page | Product Page |
