Booster In-Line

4 x 10/100/1G In-Line Links to 1 x 1/10G
Get a Quote
Booster In-Line

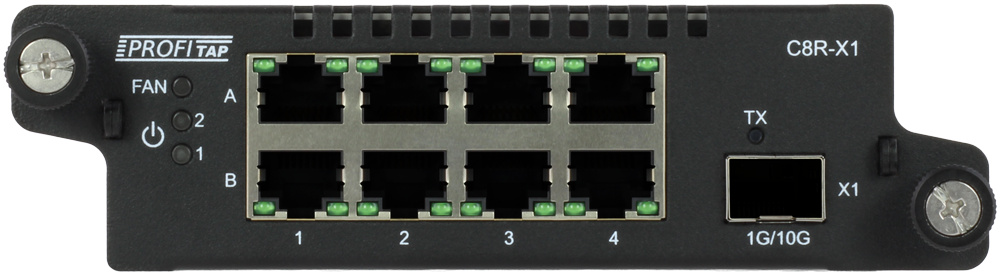

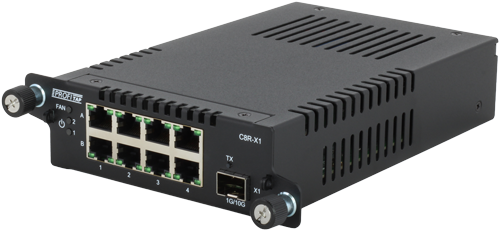

The Booster In-Line Gigabit Copper Aggregation TAP connects 4 x 10/100/1G in-line links to one 1/10G output port, providing fail-safe traffic aggregation and speed conversion in a single compact device.

The Booster supports ingress VLAN tagging, as well as link failure propagation (LFP) — a feature which transmits link failure errors between ports, allowing the network to activate a redundant path, while the TAP stays available for auto-negotiation. The integrated Data Diode feature protects the network from any injection of data from the monitor port.

Technical Specifications

Lossless Aggregation

Lossless Aggregation

Conventional Aggregation TAP solutions often feature output ports with the same speed as the network links. This causes oversubscription on the output port of the TAP, causing valuable packets to be lost. By aggregating network traffic to a 10 Gbps output, no packet loss occurs. Whether traffic is forwarded to a Network Packet Broker or an IOTA, the Profitap Booster delivers lossless aggregation, while also reducing network complexity.

Speed conversion with Booster In-Line

Speed Conversion

Many high throughput devices like network packet brokers feature ports designed for 40/100 Gbps operation. With breakout cables, individual connections at 10 Gbps can be established, but lower speeds are often not a possibility. This means that lower speed links, such as 10M/100M/1G, cannot be forwarded directly to the toolset.

The Profitap Booster converts these links into a single 10 Gbps output, bringing additional speeds to new and existing tools in a cost-effective way.

Network Ports
8 x RJ45 10/100/1000 Mbps

Monitor Port
1 x SFP+ 1/10 Gbps

Footprint
Up to 3 in 1U

Power
12 VDC

AC Adapter
100–240 VAC

  • Aggregation of 8 ports (4 in-line links) RJ45 10/100/1G into 1 SFP+ 1G-10G output
  • Direct link aggregation, no required management, installation or driver
  • Ingress VLAN Tagging
  • Non-intrusive to the network
  • Supports link failure propagation
  • PoE passthrough
  • Redundant powering
  • Fail-safe in-line design ensures uninterrupted network operation in case of power loss
  • Data Diode function prevents any injection of data from the monitoring port back into the network
  • Network ports galvanically separated from monitor port for maximum security
PT-1G-BT-45 PT-1G-SX-85 PT-1G-LX-31 PT-10G-SR-85 PT-10G-LR-31 PT-10G-BT-45
SFP Module SFP Module SFP Module SFP Module SFP Module SFP Module
1000BASE-T
SFP 100M (RJ45)
1000BASE-SX
SFP 850NM 550M (LC)
1000BASE-LX/LH
SFP 1310NM 20KM (LC)
10GBASE-SR
SFP+ 850NM 300M (LC)
10GBASE-LR
SFP+ 1310NM 10KM (LC)
10GBASE-T
SFP+ 30M (RJ45)
Power Supply Triple Power Supply Rackmount Chassis Kit
Power Supply Triple Power Supply Rackmount Chassis Kit
Ordering Reference: APWRB Ordering Reference: APWRB3 Ordering Reference: ARKB-1U
Go to Product Page Go to Product Page Go to Product Page
