Aggregation TAPs
Profitap Boosters also operate as speed converters, which allows you to connect tools that support different speeds together. For example, a Booster brings 10M, 100M, and 1G support on Network Packet Brokers and analysis tools that only support speeds of 10G and above.
The Booster In-Line Dual Output Gigabit Copper Aggregation TAP connects 4 x 10/100/1G fail-safe in-line links to two replicated 1/10G output ports.
The Booster SPAN Dual Output Aggregation TAP connects 8 x 10/100/1G out-of-band connections (SPAN) to two replicated 1/10G output ports.
The Booster In-Line Dual Output Gigabit Copper Aggregation TAP connects 4 x 10/100/1G fail-safe in-line links to two replicated 1/10G output ports.
The Booster SPAN Dual Output Aggregation TAP connects 8 x 10/100/1G out-of-band connections (SPAN) to two replicated 1/10G output ports.
Model
Booster In-Line
Booster In-Line Dual Output
Booster SPAN
Booster SPAN Dual Output
Input
(4 in-line links)
(4 in-line links)
out-of-band (SPAN)
out-of-band (SPAN)
Output
Type
Datasheet
Booster In-Line
Input: 8 x RJ45 10/100/1000 Mbps (4 in-line links)
Output: 1 x SFP+ 1/10 Gbps
Type: Aggregation of 4 in-line links to a single output

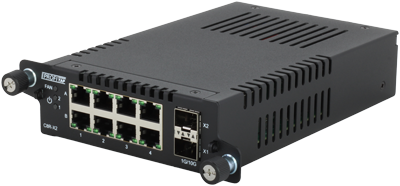

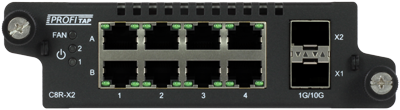

Booster In-Line Dual Output
Input: 8 x RJ45 10/100/1000 Mbps (4 in-line links)
Output: 2 x SFP+ 1/10 Gbps
Type: Aggregation of 4 in-line links and replication to two outputs

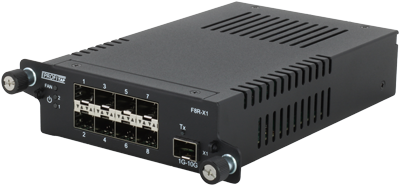

Booster SPAN
Input: 8 x SFP 10/100/1000 Mbps out-of-band (SPAN)
Output: 1 x SFP+ 1/10 Gbps
Type: Aggregation of 8 out-of-band inputs to a single output

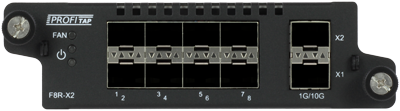

Booster SPAN Dual Output
Input: 8 x SFP 10/100/1000 Mbps out-of-band (SPAN)
Output: 2 x SFP+ 1/10 Gbps
Type: Aggregation of 8 out-of-band inputs and replication to two outputs
article

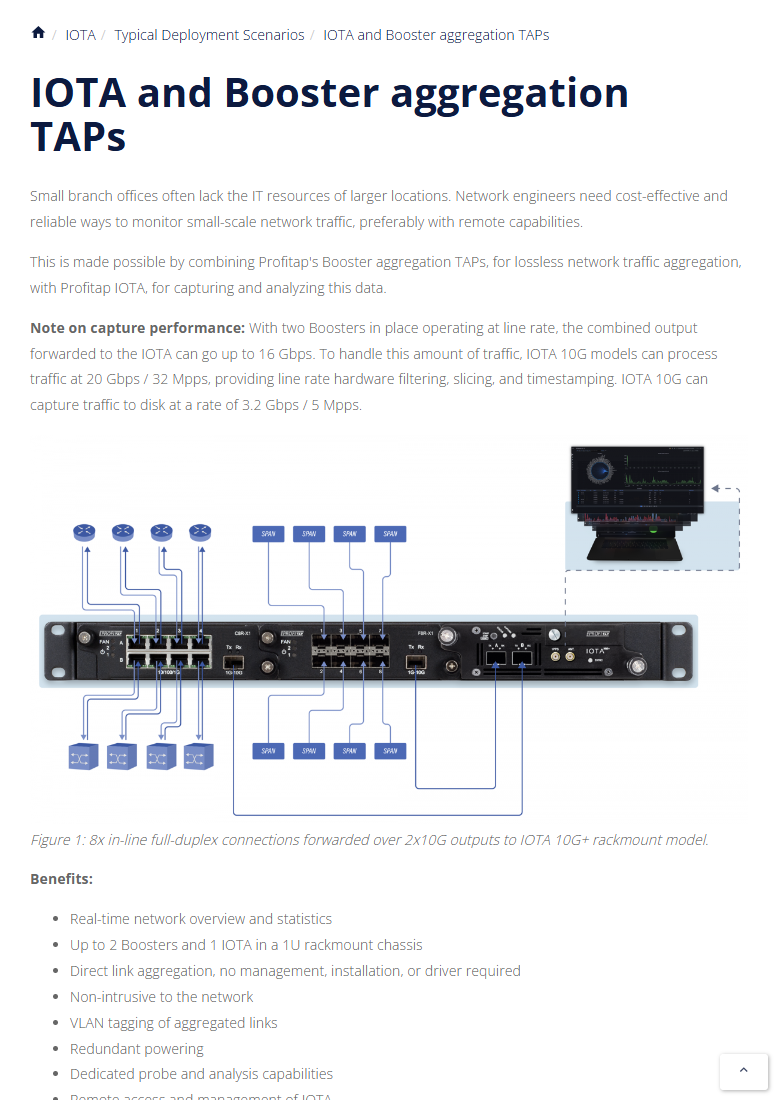

IOTA and Booster aggregation TAPs
