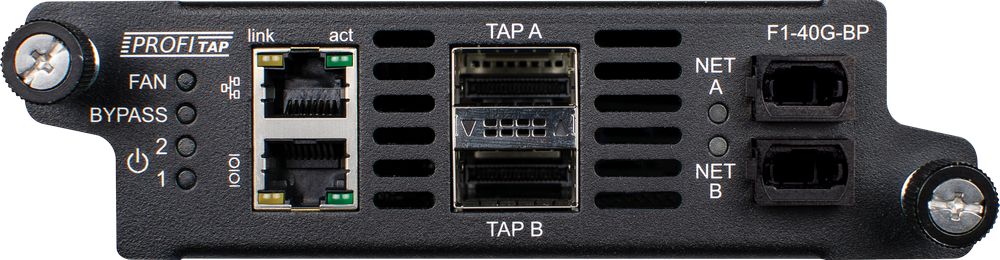

40G Bypass TAP Front
40G Bypass TAP

Fail-safe Solution for Optimal Network Availability



Placed in front of in-line security appliances, the 40G Bypass TAP keeps the network link operational even when these tools become unavailable. It represents a fail-safe solution that actively checks their availability by sending heartbeat packets.

If the tools’ availability is compromised in any way, the TAP automatically switches to a bypass mode, maintaining the network link up until the issue is fixed.

At the same time, the Bypass TAP allows network engineers to manually bypass the in-line tool so that they can keep the network fully operational during maintenance and troubleshooting.

Technical Specifications

Fail-Safe Bypass & Heartbeat

Designed to support active in-line network security and performance tools, our Bypass TAPs make sure these devices don’t become a single point of failure in your network. By sending heartbeat packets, they can accurately track if the connected device is operational.

In the event that the in-line device fails, either due to a hardware malfunction, power loss, or software problem, the 40G Bypass TAP fail-safe protection will keep the critical link up.

Fail-Safe Bypass & Heartbeat Illustration
Fail-Safe Bypass & Heartbeat Illustration

Fail-Safe Bypass & Heartbeat

Designed to support active in-line network security and performance tools, our Bypass TAPs make sure these devices don’t become a single point of failure in your network. By sending heartbeat packets, they can accurately track if the connected device is operational.

In the event that the in-line device fails, either due to a hardware malfunction, power loss, or software problem, the 10G Bypass TAP fail-safe protection will keep the critical link up.

Connectors
2 x MPO (MM) or 2 x LC QUAD (SM)
2 x SFP28 2 x RJ45 8 pins 2 x 12 VDC
Speeds
40 Gbps
Footprint
Up to 3 in 1U
Power
12 VDC
AC Adapter
100–240 VAC
    • Remote access and management with GUI/CLI
    • Bidirectional Heartbeat (ping signal to and from the monitored appliance)
    • Customizable heartbeat packets, including IPX, ICMP request/reply, LCP request/reply and TCP-SYN
    • Link Failure Propagation (LFP)
    • Predefined and custom Heartbeat signal type
    • Fine Heartbeat control
    • 40G operation
    • High-reliability design, no point of failure
Rackmount Chassis Kit
Rackmount Chassis Kit
Ordering Reference: ARKB-1U
Go to Product Page
PT-40G-SR4-85 PT-40G-LR4-31
SFP Module SFP Module
40GBASE-SR4 QSFP+ 850NM 150M (MTP/MPO) 40GBASE-LR4 QSFP+ 1310NM 10KM (LC)

BP-Manager Overview

The Bypass TAP can be administrated either in CLI mode or in a graphical interface called BP-Manager.

BP-Manager is a web-based interface, easily accessible from any OS or platform.

Bypass Settings

Bypass Settings



Device Status

Device Status



Global Statistics

Global Statistics



Port Management

Port Management



BP-Manager Settings

BP-Manager Settings



Bypass Settings

Bypass Settings

BP-Bypass Settings



Device Status

Device Status

BP-Device Status



Global Statistics

Global Statistics

BP-Global Statistics



Port Management

Port Management

BP-Port Management



BP-Manager Settings

BP-Manager Settings

BP-Manager Settings
