1-Link Gigabit Copper TAP

Get a Quote
Gigabit TAP with Battery

Gigabit Copper TAP with Battery Backup

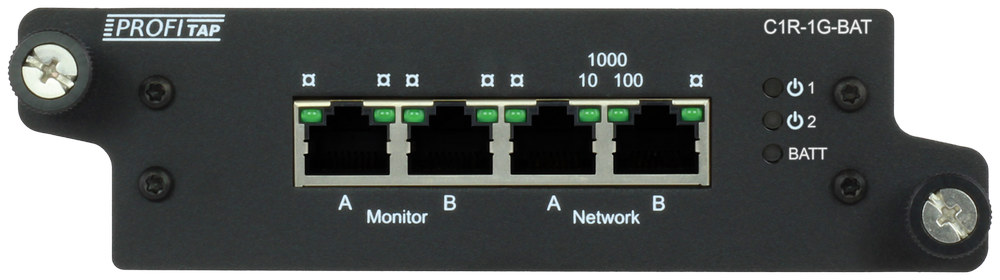

Profitap C1R-1G-BAT provides complete visibility and access for in-line monitoring of 10/100/1000Base-T networks. The C1R-1G-BAT creates an exact copy of the network traffic, including low-level errors and VLAN traffic, providing full-duplex traffic to the monitoring tools. C1R-1G-BAT features No Break fail-safe technology: unlike conventional fail-safe features, No Break switches quickly enough that it does not cause the network link to renegotiate. The integrated Data Diode feature protects the network from any injection of data from the monitor ports. Fitted with a backup battery, the C1R-1G-BAT Gigabit Ethernet TAP is suited for high availability networks, as it fully prevents network disruptions in case of power failure.

Technical Specifications

No Break Technology

Profitap Gigabit Ethernet TAPs feature dramatically reduced failover time, consequently reducing the chances of Spanning Tree reconvergence.

This makes them flawlessly designed to synthesize maximum performance and maximum security.

Network Link
Monitor Output
10/100/1000 Mbps
Up to 3 in 1U
12 VDC & Internal Battery Backup
AC Adapter
100–240 VAC
  • Non-intrusive in-line network access
  • Permanent network link guaranteed
  • Fail-safe in-line design ensures uninterrupted network operation in case of power loss
  • Monitoring of all 7 OSI layers
  • No packet loss, no point of failure
  • Data Diode function prevents any injection of data from the monitoring ports back into the network
  • Fully 802.3af & VoIP compliant, PoE passthrough
  • Low power consumption
  • Supports link failure propagation (LFP)
  • Redundant powering
Power Supply Rackmount Frame Filler Plates
Ordering Reference: APWR2 Ordering Reference: ARF-1U Ordering Reference: AFP-1U
Product Page Product Page Product Page

Learn more about this product on Profitap Academy

TAP fail-over time comparison

When compared to other TAPs on the market, the Profitap Network TAP was able to recover from power problems faster than any other TAPs tested by Mike Pennacchi.

Watch now

What are network TAPs and why do we need them

A detailed overview of what network TAPs are. Explains how a TAP can easily resolve your network problems.

Read now


Highlights the main differences between a Network TAP and a SPAN. Explains why TAPs should be the obvious choice if you want full visibility into your network traffic.

Read now
